1. Excellence in SAP Operations & Connecting SAP Systems to Azure Sentinel


SAP certified NetWeaver Applications running on Azure in 2014 and since this time thousands of customers have moved their SAP landscape to Azure.  Many customers updated their SAP applications either to modern SAP Support Pack releases or migrated to S4 during the move to Azure.

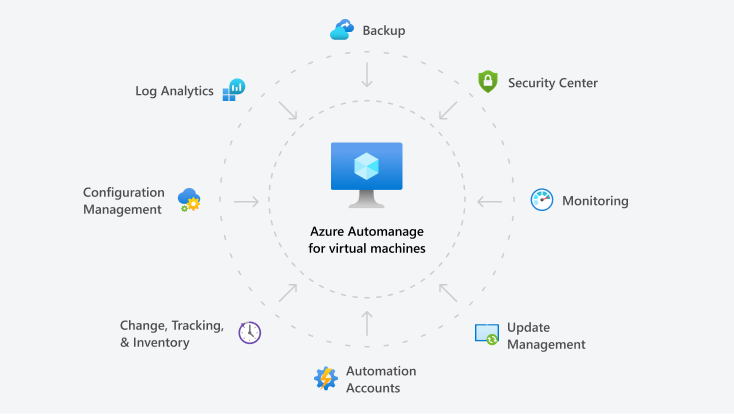

Customers have also leveraged many of the features built into the Azure platform to improve Security, Monitoring, Patching, Backup, Configuration Management and achieve better overall “Operational Excellence”.


More information about Azure Automanage can be found Azure Automanage | Microsoft Azure




Azure Sentinel is an integrated scalable, cloud-native, security information event management (SIEM) and security orchestration automated response (SOAR) solution.  A good overview of Azure Sentinel can be found What is Azure Sentinel? | Microsoft Docs


Azure Sentinel: SAP Threat Protection extends this capability to be able to monitor and analyze application level events from SAP systems. This feature is currently in Preview, registration is available https://aka.ms/sapsecsurvey

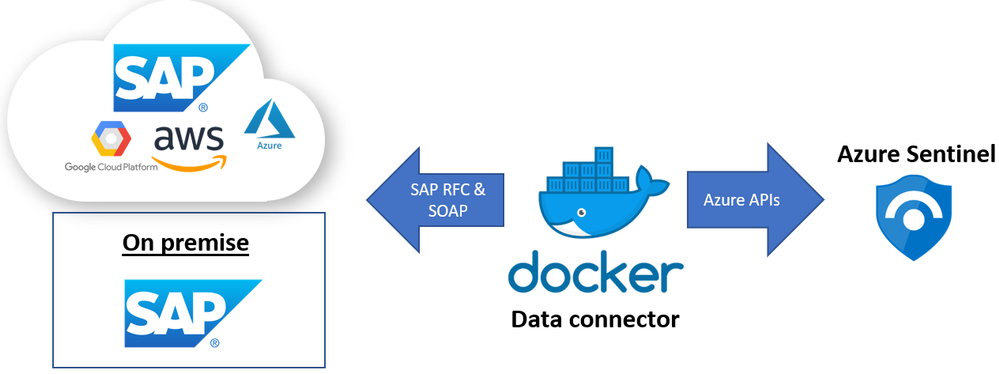

SAP Threat Protection uses a Docker to host a “connector” VM that interfaces SAP to Azure Sentinel




SAP Threat Protection is still in preview and the monitoring capabilities are still being defined.  Below are some examples of events that can be monitored:


SAP Business Logic – transaction monitoring, User + Role management


SAP Application Layer – Authentication and Audit log


Database Layer (HANA) – user access and Backup/Restore


OS & Network Layer – file monitoring


More information about which events can be monitored is available to customers who join the Preview for SAP Threat Protection





Installation details:



  1. SAP Threat Protection can connect to SAP systems running on-prem, in private cloud, Azure or other public clouds

  2. The solution supports SAP NetWeaver ABAP systems with SAP_BASIS 740 and higher

  3. For optimal functionality please use SAP_BASIS versions 750 SP13 and higher .

  4. Make sure older systems have the following SAP Notes applied  :

    1. SAP Note 2641084 – standardized read access for the Security Audit log data

    2. SAP Note 2173545 – CD: CHANGEDOCUMENT_READ_ALL

    3. SAP Note 2502336 – RSSCD100 – read only from archive, not from database

    4. Importing some SAP Transports may be required



  5. Each SAP system requires and each SAP client requires its own container instance

  6. The VM and Sentinel workspace can be in different Azure subscriptions and even different Azure AD tenants

  7. Each SAP connector instance (docker container) supports one SAP client

  8. The AuditLog file is across SAP clients (system wide) hence in a multi-client SAP system should only be enabled for one instance to avoid data duplication.





Sentinel Blog: Azure Sentinel – Microsoft Tech Community


Preview program at: https://aka.ms/SecurityPrP


Security community at: https://aka.ms/SecurityCommunity


Free public webinars series at: https://aka.ms/SecurityWebinars


Visit our YouTube channel: https://aka.ms/SecurityCommunityVideos


Sentinel Pricing: https://azure.microsoft.com/en-us/pricing/details/azure-sentinel/


Recommended training and certifications AZ-500(Microsoft Certified: Azure Security Engineer Associate) https://docs.microsoft.com/en-us/learn/certifications/exams/az-500





Thanks to Ravi Alwani for contributing this topic





New Azure Monitor for SAP Solutions HA Cluster features – Microsoft Tech Community – Thanks to


Ross Sponholtz for contributing this topic


2. Azure Snapshot Backup for Oracle (including ASM) & Oracle News


This topic contains information for customers running SAP on Oracle systems on Azure:






  1. Oracle customers including ASM customers can use Azure Backup to take snapshots to Backup or Restore their databases Back up and recover an Oracle Database 19c database on an Azure Linux VM using Azure Backup – Azure Virtual Machines | Microsoft Docs

  2. The recommended versions are Oracle Linux (OL) 8.3 recommended OL Kernel patch is 5.4.17-2102.200.13.el8uek.x86_64 and Oracle Database 19.10 SBP

  3. The latest supported Oracle Database release is in 2799920 – Patches for 19c: Database

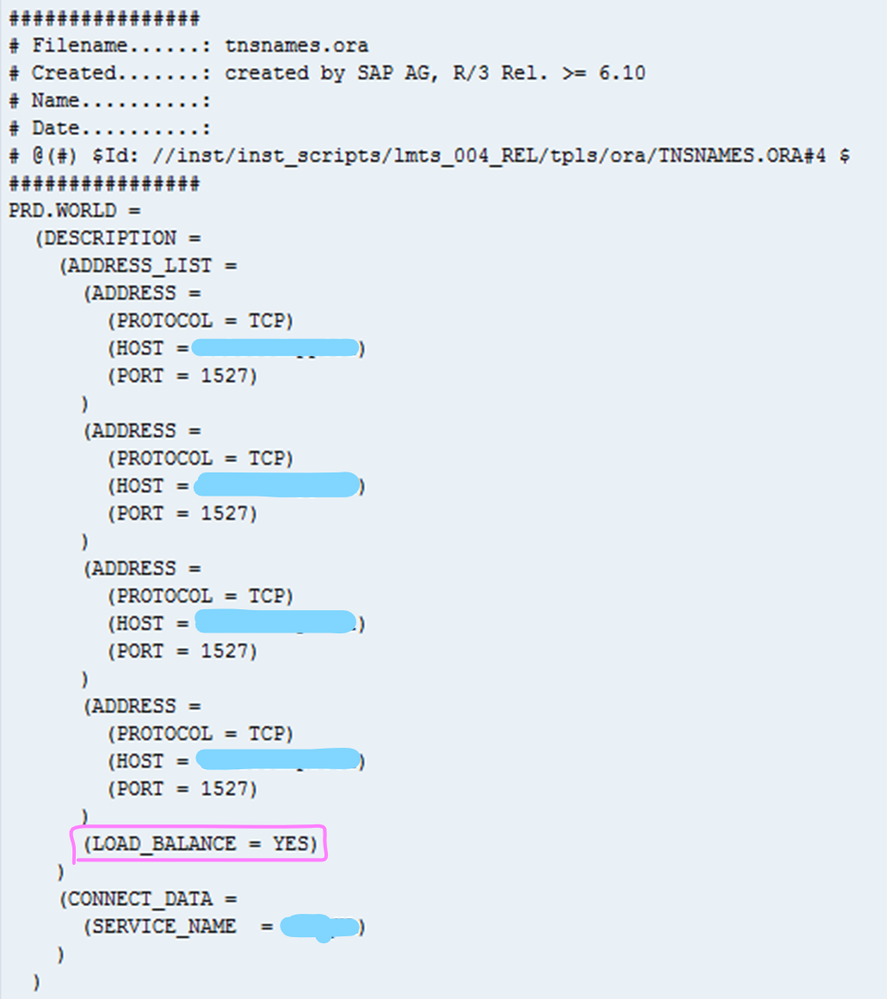

  4. When setting up Oracle DataGuard on Azure the tnsnames.ora file should be configured as explained in this document








  1. In all cases it is recommend to review this SAP Note if there are performance problems 1817553 – Checklist for performance problems in SAP Oracle Databases





3. Azure Storage Block Size Physical Constrains & DBMS Disk Storage Guidance


Several customers have encountered issues with DBMS server High Availability technologies and the different types of storage available on Azure.  Software based DBMS replication technologies such as SQL Server AlwaysOn, Hana HSR and Oracle DataGuard may not function correctly if the Primary and Secondary(ies) Node are using Azure storage with a different sector size.


Most Enterprise DBMS storage engine logic detects the disk Sector Size and will align the Transaction Log File(s) metadata and internal boundaries to match the Sector Size (either 512 or 4096 bytes).  When using SQL AlwaysOn, HSR or DataGuard with different Sector Sizes on Primary and Replica nodes alignment problems may occur.  Some DBMS may handle this (such as SQL Server which will print a warning in the errorlog) and some may not.


The SAP on Azure storage guidance has been updated to include a recommendation to ensure the sector size is the same between HA nodes.  Depending on the DBMS and the type of replication technology used the same constraints around Disk Sector size may exist for Disaster Recovery nodes as well.

































“Bytes Per Sector”



“Bytes per Physical Sector”



Drive Type



Azure Storage



4096



4096



4K Native



UltraDisk



512



4096



Advanced Format (also known as 512E)



Premium



512



512



512-byte native

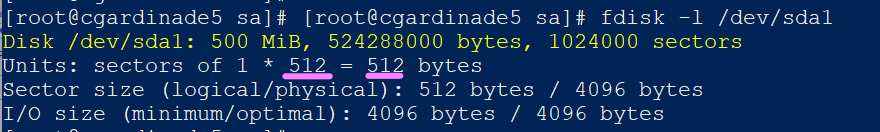

The Linux command fdisk -l or Windows command fsutil ntfsinfo

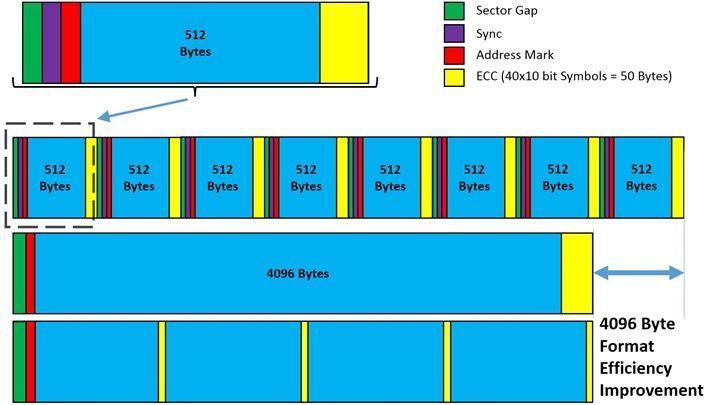

The diagram below illustrates the benefits of 4K Native.







Additional information for SQL Server can be found here Message misaligned log IOs which required falling back to synchronous IO in SQL Server Error Log – Microsoft Tech Community


SAP HANA Azure virtual machine storage configurations – Azure Virtual Machines | Microsoft Docs


Azure storage types for SAP workload – Azure Virtual Machines | Microsoft Docs





4. Linux Cluster Updates – Redhat & Suse

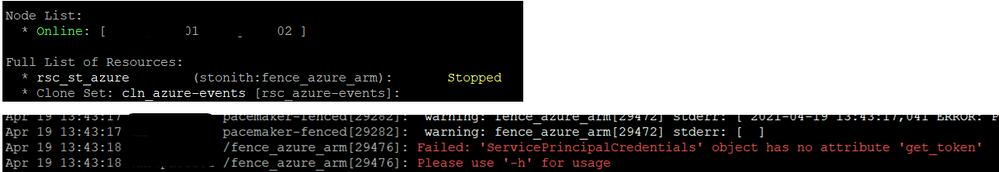

Customers running on Suse 15 may experience an issue similar to the below – Failed: ‘ServicePrincipalCredentials’ object has no attribute ‘get_token’, if using Azure Fence Agent.







This problem was introduced with package version python3-azure-mgmt-compute-17.0.0-6.7.1  and may occur on any of the SLES 15.X images. The problem can be resolved by downgrading the “python3-azure-mgmt-compute” package





To downgrade the package run this command (two hyphens in front of oldpackage)


#zypper install –oldpackage python3-azure-mgmt-compute=4.6.2-6.3.1


After downgrading it is possible to prevent upgrades of this package with this command:


#zypper addlock python3-azure-mgmt-compute





Customers running Redhat 7.x and 8.x with Pacemaker clusters are recommended to review this Redhat article


This blog will be updated with more information about this issue shortly.


An azure-lb resource fails with error “kill: (xxxx) – No such process” in a Pacemaker cluster – Red Hat Customer Portal





5. Moving Job Logs from Filesystem to Database


In SAP Basis release SAP_BASIS 7.51 it is possible to move Job Logs from the file system to the database.  As of SAP_BASIS 7.52 this behavior is defaulted (though it is possible to switch to file system via parameters).


This topic is explained in SAP Note 2360818 – Job log in the database


Instead of storing job log data on the file system this information will be stored in a number of tables TBTCJOBLOG0-9





Very large global single instance SAP systems can have millions and in some cases tens of millions of files in /sapmnt.  The majority of these files are usually Job Logs.  Customer moving very large systems to Azure with more than 200,000-300,000 files in the /sapmnt file system should test carefully.


Microsoft delivers a tool called diskspd for Windows and Linux that can be used to test disk performance.


It is recommended to follow the process below when moving a large system with a very large /sapmnt to Azure:



  1. Monitor the total number of files on /sapmnt.  Determine if Job Logs comprise the majority of the files

  2. If possible switch to storing the Job Logs in the database

  3. If possible clean up Job Log files more regularly

  4. Use sysstat/SAR, Perfmon or SAN specific tools to monitor the IO patterns on the storage sharing /sapmnt

  5. Create a /sapmnt on Azure with the same performance capability as measured in step #4

  6. Run diskspd on this empty file system

  7. Copy the contents of /sapmnt to the /sapmnt file system on Azure

  8. Rerun diskspd on the file system on Azure with many files – compare the results to #6

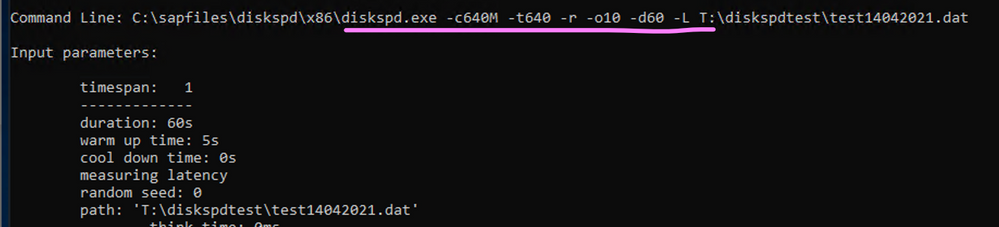

A sample command line that would stress a disk is below







Download Diskspd for Windows and Linux


Use DISKSPD to test workload storage performance – Azure Stack HCI | Microsoft Docs


GitHub – microsoft/diskspd-for-linux: A disk io load-generator and benchmarking tool for Linux, based on the Windows tool diskspd.





How to use Diskspd to check IO subsystem performance – SQLTerritory.com


https://wiki.scn.sap.com/wiki/display/SI/SAP+Kernel%3A+Important+News





6. Optimizing DMO Migrations to Azure – Some Basic Infrastructure Tools


SAP DMO can be used to directly migrate from AnyDB -> SQL Server or to Hana, perform an upgrade and migrate to another datacenter such as Azure.  DMO offers a number of different “Zero Downtime” options.  These are explained very well in this blog:


Downtime Optimization Approach – Let’s talk all about different ZERO’s | SAP Blogs


This blog explains how to feed a DMO test cycle with the results of a previous test cycle thereby automatically optimizing table splitting – MIGRATE_UT_DUR.XML and MIGRATE_DT_DUR.XML


DMO: optimizing system downtime is timeless… | SAP Blogs





There are two tools that are very useful to isolate and determine the source of resource constraints during a DMO test cycle.  During the DMO process writing to the Transaction Log and the DBMS Checkpoint/Savepoint processes in may become a critical gating factor.  Another possible problem that is easily identified with these tools is asymmetric CPU load (one CPU core pegged at 100% for long periods of time while other CPUs are at 0%).   NMON and SAR allow very clear instant and historical visualization of key performance metrics.





On the Hana DB server and the VM(s) running DMO it is highly recommended to install nmon and sysstat(SAR).



  1. Unfortunately NMON is not available in any respository such as zypper, apt, yum and must be downloaded http://nmon.sourceforge.net/pmwiki.php

  2. sysstat or SAR may or may not be installed and activated by default.  Typically most Suse gallery images have SAR running by default.  Check the directory /var/log/sa.  If the directory does not exist or does not contain recent sarXX files then follow the steps below

  3. KSAR is a graphical tool that presents system performance information in a simple and easy to interpret way.  This tool requires a runtime JVM https://github.com/vlsi/ksar





If sysstat needs to be installed follow the steps below


# sudo yum install sysstat


# sudo service sysstat restart


Redirecting to /bin/systemctl restart sysstat.service


The /var/log/sa/sarXX files can be copied onto a Windows PC with sftp


sftp -i <keyfilename>.pem azureuser@<xx.xx.xx.xx>


get /var/log/sa/sar<XX>





Run “Java -jar C:sap_mediaksar.jar




7. Windows Cluster Across Azure Regions


Recently some customers and partners have asked about Azure Cross Region clusters.


Technically this is possible, though this deployment pattern has not been tested or validated on Azure so far.


The SAP note 1425520 – Disable NI cache for host and service names prevents the SAP application server from caching hostname to IP address lookups.  This forces more calls to DNS which in turn may need tuning to lower the TTL (Time to Live).


The blog below and attached video are essential reading for any customer considering such a solution.


Can I run an SAP system in different network subnets? | SAP Blogs


SAP NetWeaver on Network Level (ondemand.com)


Cross region geoclusters for SQL Server are already supported and documented





8. Update on Support Matrix for SAP on Azure


In recent months many new features have become available for SAP customers.  The list below is a very brief overview of recommended features and updated documentation

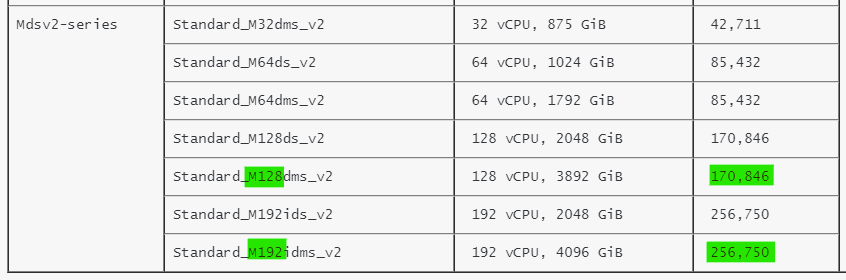

  1. New VM types certified for Hana & NetWeaver!


These new VMs based on  Intel® Xeon® Platinum 8280 (Cascade Lake) processor with an all core base frequency of 2.7 GHz and 4.0 GHz single core turbo frequency deliver an increase from 134,000 SAPS to 170,000 SAPS for 128 cpu configurations.  A new 192 cpu VM delivers 256,000 SAPS.  Note the restrictions on OS versions.  Check this link for Hana Certifications













https://techcommunity.microsoft.com/t5/running-sap-applications-on-the/general-availability-of-m-series-msv2-mdsv2-medium-memory-vms/ba-p/2271293


https://docs.microsoft.com/en-us/azure/virtual-machines/msv2-mdsv2-series


SAP Note 1928533 already shows Msv2/Mdsv2 in the chapter “Supported Azure VM types for SAP products on Windows and Linux”






  1. Azure Hana Large Instances now support a 12TB DRAM + 12TB Intel Optane configuration, improving TCO and performance.  A new benchmark result has been published here






  1. Azure offers the ability to run IBM pSeries and Nutanix environments.  The certification and support of SAP NetWeaver and Hana on these solutions is handled by the respective vendor.


Skytap on Azure (microsoft.com)


Hybrid Cloud Solutions with Nutanix and Microsoft Azure






  1. Multiple Hana datafile support for ANF.  There is a 16TB maximum file size limit on NFS therefore multiple Hana datafiles are required for large customers. HANA Data File Partitioning – Installation – Microsoft Tech Community






  1. It is now possible to backup Azure Files in Azure Backup Back up Azure file shares in the Azure portal – Azure Backup | Microsoft Docs


9. Gen2 Azure VM Does Not Reboot After Suse 15.x Upgrade


Customers running Suse 15 on Generation2 VMs may notice that a VM fails to reboot after an in-place service pack upgrade.


The problem may occur during any upgrade vector such as from the original SLES 15 RTM release to SLES SP1 or SLES SP1 upgrading to SLES SP2.


Service Pack upgrades on Suse Pacemaker systems are generally not recommended so this problem is so far confined to SAP Application servers or surrounding VMs such as Webdispatcher. The issue exclusively applies to Generation2 Virtual Machines and does not apply to Generation1. SLES released a TID with the way to get out of the situation after an unsuccessful post-upgrade reboot or what to do after the upgrade finished before you reboot the VM in this article: grub2 error: symbol `grub_file_filters’ not found | Support | SUSE


Customers planning to upgrade their SLES 15.x versions to a more recent service pack please review this TID.


Linux Rescue VM for Suse  Chroot environment in a Linux Rescue VM. – Virtual Machines | Microsoft Docs


10. Windows & SQL Server Topics


There are several new and important Windows and SQL Server topics:





SQL Server 2012 is nearing end of life and in addition to end of life there may be some licensing changes for 3rd party cloud deployments


3049393 – SQL Server 2012 end of Microsoft Extended Support in July 2022





Azure Backup for SQL Server now fully supports nearly all SQL Server Backup & Restore Restore SQL Server databases on an Azure VM – Azure Backup | Microsoft Docs


More features for SQL Server can be found here SQL Server – Microsoft Tech Community


More features for Azure Backup can be found here Azure Backup (@AzureBackup) / Twitter





Customers with hardened Active Directory (“RestrictRemoteSam” security feature) may observe this error in the SAPInst errorlog – OS message 1332 (No mapping between account names and security IDs was done).  Use the latest version of SWPM


SWPM now fully supports hardened Domain controllers


3030014 – SWPM stops during check of group membership





2831797 – How to disable page locks during a SAP NetWeaver import on MS SQL Server to prevent deadlocks on split tables


2814195 – Can use a Query Store?


2807743 – Release planning for Microsoft SQL Server 2019


2751450 – SAP Systems on Windows Server 2019


3004493 – 500ms delays in communication between ABAP and MS SQL database


2931465 – Reduce network latency (RTT) using Proximity placement groups on Microsoft Azure – NetWeaver


Additional Links & Notes


Azure Certification and Training courses


Collections – MicrosoftAzuretrainingandcertifications | Microsoft Docs





SAP on Azure Free Online Training Course.  Exam AZ-120: Planning and Administering Microsoft Azure for SAP Workloads


https://docs.microsoft.com/en-us/learn/certifications/exams/az-120


A free Certification Exam offer is here https://docs.microsoft.com/en-us/learn/certifications/microsoft-build-cloud-skills-challenge-2020-free-certification-exam-offer





The main SAP on Azure site https://azure.microsoft.com/en-us/solutions/sap/


SAP on Azure Resources https://azure.microsoft.com/en-us/solutions/sap/resources/


SAP on Azure Updates on the main Azure site https://azure.microsoft.com/en-us/updates/?query=sap


SAP on Azure Documentation “Getting Started”  https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/get-started





Azure Charts – Your Cloud Radar  https://azurecharts.com/

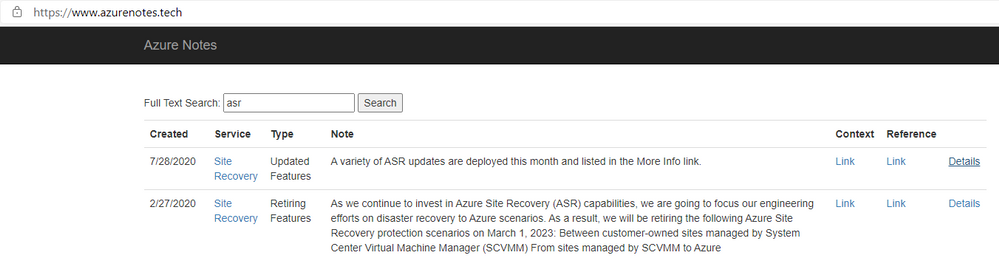

https://www.azurenotes.tech allows you to filter the very large number of new features, updates and documentation references for a given Azure feature (in the example below ASR)
