In this article I’ll show you how to create a redundtant storage pool using GlusterFS and Azure Shared Disks. GlusterFS is a network-attached storage filesystem that allows you to pool storage resources of multiple machines. Azure shared disks is a new feature for Azure managed disks that allows you to attach a managed disk to multiple virtual machines (VMs) simultaneously. Please note that enabling shared disks is only available to a subset of disk types. Currently only ultra disks and premium SSDs can enable shared disks. Check if the VM type you are planning to use support ultra or premium disks.










Our setup will consist in:



  • An Azure Resource Group containing the resources

    • An Azure VNET and a Subnet

    • An Availability Set into a Proximity Placement Group

    • 2 Linux VMs (Ubuntu 18.04)

      • 2 Public IPs (one for each VM)

      • 2 Network Security Groups (1 per VM Network Interface Card)

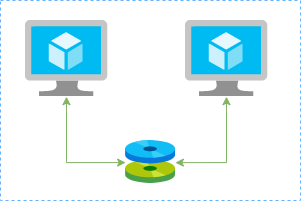

    • A Shared Data Disk attached to the both VMs




I’ll be using the Azure Cloud Shell once is fully integrated to Azure and with all modules I need already installed.





Create SSH key pair





ssh-keygen -t rsa -b 4096




Create a resource group





New-AzResourceGroup -Name “myResourceGroup” -Location “EastUS”




Create virtual network resources





Create a subnet configuration





$subnetConfig = New-AzVirtualNetworkSubnetConfig `
-Name “mySubnet” `
-AddressPrefix 192.168.1.0/24




Create a virtual network





$vnet = New-AzVirtualNetwork `
-ResourceGroupName “myResourceGroup” `
-Location “EastUS” `
-Name “myVNET” `
-AddressPrefix 192.168.0.0/16 `
-Subnet $subnetConfig




Create a public IP address for the VM01





$pip01 = New-AzPublicIpAddress `
-ResourceGroupName “myResourceGroup” `
-Location “EastUS” `
-AllocationMethod Static `
-IdleTimeoutInMinutes 4 `
-Name “mypublicip01”




Create a public IP address for the VM02





$pip02 = New-AzPublicIpAddress `
-ResourceGroupName “myResourceGroup” `
-Location “EastUS” `
-AllocationMethod Static `
-IdleTimeoutInMinutes 4 `
-Name “mypublicip02”




Create an inbound network security group rule for port 22





$nsgRuleSSH = New-AzNetworkSecurityRuleConfig `
-Name “myNetworkSecurityGroupRuleSSH” `
-Protocol “Tcp” `
-Direction “Inbound” `
-Priority 1000 `
-SourceAddressPrefix * `
-SourcePortRange * `
-DestinationAddressPrefix * `
-DestinationPortRange 22 `
-Access “Allow”




Create a network security group for the VM01





$nsg = New-AzNetworkSecurityGroup `
-ResourceGroupName “myResourceGroup” `
-Location “EastUS” `
-Name “myNetworkSecurityGroup01” `
-SecurityRules $nsgRuleSSH




Create a network security group for the VM02





$nsg = New-AzNetworkSecurityGroup `
-ResourceGroupName “myResourceGroup” `
-Location “EastUS” `
-Name “myNetworkSecurityGroup02” `
-SecurityRules $nsgRuleSSH




Create a virtual network card for VM01 and associate with public IP address and NSG





$nic01 = New-AzNetworkInterface `
-Name “myNic01” `
-ResourceGroupName “myResourceGroup” `
-Location “EastUS” `
-SubnetId $vnet.Subnets[0].Id `
-PublicIpAddressId $pip01.Id `
-NetworkSecurityGroupId $nsg.Id




Create a virtual network card for VM02 and associate with public IP address and NSG





$nic02 = New-AzNetworkInterface `
-Name “myNic02” `
-ResourceGroupName “myResourceGroup” `
-Location “EastUS” `
-SubnetId $vnet.Subnets[0].Id `
-PublicIpAddressId $pip02.Id `
-NetworkSecurityGroupId $nsg.Id




Create availability set for the virtual machines.





$set = @{
Name = ‘myAvSet’
ResourceGroupName = ‘myResourceGroup’
Location = ‘eastus’
Sku = ‘Aligned’
PlatformFaultDomainCount = ‘2’
PlatformUpdateDomainCount = ‘2’
}
$avs = New-AzAvailabilitySet @set




Create the first virtual machine (myVM01)





Define a credential object





$securePassword = ConvertTo-SecureString ‘ ‘ -AsPlainText -Force
$cred = New-Object System.Management.Automation.PSCredential (“azureuser”, $securePassword)




Create a virtual machine configuration





$vmConfig = New-AzVMConfig `
-AvailabilitySetId $avs.Id `
-VMName “myVM01” `
-VMSize “Standard_D4s_v3” | `
Set-AzVMOperatingSystem `
-Linux `
-ComputerName “myVM01” `
-Credential $cred `
-DisablePasswordAuthentication | `
Set-AzVMSourceImage `
-PublisherName “Canonical” `
-Offer “UbuntuServer” `
-Skus “18.04-LTS” `
-Version “latest” | `
Add-AzVMNetworkInterface `
-Id $nic01.Id




Configure the SSH key





$sshPublicKey = cat ~/.ssh/id_rsa.pub
Add-AzVMSshPublicKey `
-VM $vmconfig `
-KeyData $sshPublicKey `
-Path “/home/azureuser/.ssh/authorized_keys”




Create the VM





New-AzVM `
-ResourceGroupName “myResourceGroup” `
-Location eastus -VM $vmConfig




Create the second virtual machine (myVM02)





Define a credential object





$securePassword = ConvertTo-SecureString ‘ ‘ -AsPlainText -Force
$cred = New-Object System.Management.Automation.PSCredential (“azureuser”, $securePassword)




Create a virtual machine configuration





$vmConfig = New-AzVMConfig `
-AvailabilitySetId $avs.Id `
-VMName “myVM02” `
-VMSize “Standard_D4s_v3” | `
Set-AzVMOperatingSystem `
-Linux `
-ComputerName “myVM02” `
-Credential $cred `
-DisablePasswordAuthentication | `
Set-AzVMSourceImage `
-PublisherName “Canonical” `
-Offer “UbuntuServer” `
-Skus “18.04-LTS” `
-Version “latest” | `
Add-AzVMNetworkInterface `
-Id $nic02.Id




Configure the SSH key





$sshPublicKey = cat ~/.ssh/id_rsa.pub
Add-AzVMSshPublicKey `
-VM $vmconfig `
-KeyData $sshPublicKey `
-Path “/home/azureuser/.ssh/authorized_keys”




Create the VM





New-AzVM `
-ResourceGroupName “myResourceGroup” `
-Location eastus -VM $vmConfig




Create a Shared Data Disk





$dataDiskConfig = New-AzDiskConfig -Location ‘EastUS’ -DiskSizeGB 1024 -AccountType Premium_LRS -CreateOption Empty -MaxSharesCount 2
New-AzDisk -ResourceGroupName ‘myResourceGroup’ -DiskName ‘mySharedDisk’ -Disk $dataDiskConfig




Attach the Data Disk to VM01





$dataDisk = Get-AzDisk -ResourceGroupName “myResourceGroup” -DiskName “mySharedDisk”
$VirtualMachine = Get-AzVM -ResourceGroupName “myResourceGroup” -Name “myVM01”
Add-AzVMDataDisk -VM $VirtualMachine -Name “mySharedDisk” -CreateOption Attach -ManagedDiskId $dataDisk.Id -Lun 0
update-AzVm -VM $VirtualMachine -ResourceGroupName “myResourceGroup”




Attach the Data Disk to VM02





$dataDisk = Get-AzDisk -ResourceGroupName “myResourceGroup” -DiskName “mySharedDisk”
$VirtualMachine = Get-AzVM -ResourceGroupName “myResourceGroup” -Name “myVM02”
Add-AzVMDataDisk -VM $VirtualMachine -Name “mySharedDisk” -CreateOption Attach -ManagedDiskId $dataDisk.Id -Lun 0
update-AzVm -VM $VirtualMachine -ResourceGroupName “myResourceGroup”




Create a proximity placement group





$ppg = New-AzProximityPlacementGroup -Location “EastUS” -Name “myPPG” -ResourceGroupName “myResourceGroup” -ProximityPlacementGroupType Standard




Move the existing availability set into a proximity placement group





$resourceGroup = “myResourceGroup”
$avSetName = “myAvSet”
$avSet = Get-AzAvailabilitySet -ResourceGroupName $resourceGroup -Name $avSetName
$vmIds = $avSet.VirtualMachinesReferences
foreach ($vmId in $vmIDs){
$string = $vmID.Id.Split(“/”)
$vmName = $string[8]
Stop-AzVM -ResourceGroupName $resourceGroup -Name $vmName -Force
}

$ppg = Get-AzProximityPlacementGroup -ResourceGroupName myResourceGroup -Name myPPG
Update-AzAvailabilitySet -AvailabilitySet $avSet -ProximityPlacementGroupId $ppg.Id
foreach ($vmId in $vmIDs){
$string = $vmID.Id.Split(“/”)
$vmName = $string[8]
Start-AzVM -ResourceGroupName $resourceGroup -Name $vmName
}





Configure the Disk on Linux VM01





ssh azureuser@13.82.29.9




Find the disk





lsblk -o NAME,HCTL,SIZE,MOUNTPOINT | grep -i “sd”




Partition a new disk





sudo parted /dev/sdb –script mklabel gpt mkpart xfspart xfs 0% 100%
sudo mkfs.xfs /dev/sdb1
sudo partprobe /dev/sdb1




Mount the disk





sudo mkdir /datadrive
sudo mount /dev/sdb1 /datadrive




Ensure mounting during the boot





sudo blkid




The ouput should be something similar to:


/dev/sdc1: LABEL=”cloudimg-rootfs” UUID=”5a9997c3-aafd-46e9-954c-781f2b11fb68″ TYPE=”ext4″ PARTUUID=”cbc2fcb7-e40a-4fec-a370-51888c246f12″
/dev/sdc15: LABEL=”UEFI” UUID=”2FBA-C33A” TYPE=”vfat” PARTUUID=”53fbf8ed-db79-4c52-8e42-78dbf30ff35c”
/dev/sda1: UUID=”c62479eb-7c96-49a1-adef-4371d27509e6″ TYPE=”ext4″ PARTUUID=”a5bb6861-01″
/dev/sdb1: UUID=”f0b4e401-e9dc-472e-b9ca-3fa06a5b2e22″ TYPE=”xfs” PARTLABEL=”xfspart” PARTUUID=”af3ca4e5-cb38-4856-8791-bd6b650ba1b3″
/dev/sdc14: PARTUUID=”de01bd39-4bfe-4bc8-aff7-986e694f7972″




sudo nano /etc/fstab





use the UUID value for the /dev/sdb1 device. Change by the UUID from your case and add the following at the end of the file:






UUID=f0b4e401-e9dc-472e-b9ca-3fa06a5b2e22   /datadrive   xfs   defaults,nofail   1   2




Configure the Disk on Linux VM02





ssh azureuser@40.114.24.217




Find the disk





lsblk -o NAME,HCTL,SIZE,MOUNTPOINT | grep -i “sd”




Partition a new disk





As the disk already was partitioned on the VM01, we can skip this step now.





Mount the disk





sudo mkdir /datadrive
sudo mount /dev/sda1 /datadrive




Ensure mounting during the boot





sudo blkid




The ouput should be something similar to:





/dev/sdb1: LABEL=”cloudimg-rootfs” UUID=”5a9997c3-aafd-46e9-954c-781f2b11fb68″ TYPE=”ext4″ PARTUUID=”cbc2fcb7-e40a-4fec-a370-51888c246f12″
/dev/sdb15: LABEL=”UEFI” UUID=”2FBA-C33A” TYPE=”vfat” PARTUUID=”53fbf8ed-db79-4c52-8e42-78dbf30ff35c”
/dev/sdc1: UUID=”d1b59101-225e-48f4-8373-4f1a92a81607″ TYPE=”ext4″ PARTUUID=”b0218b4e-01″
/dev/sda1: UUID=”f0b4e401-e9dc-472e-b9ca-3fa06a5b2e22″ TYPE=”xfs” PARTLABEL=”xfspart” PARTUUID=”dda03810-f1f9-45a5-9613-08e9b5e89a32″
/dev/sdb14: PARTUUID=”de01bd39-4bfe-4bc8-aff7-986e694f7972″




sudo nano /etc/fstab





use the UUID value for the /dev/sda1 device. Change by the UUID from your case and add the following at the end of the file:






UUID=f0b4e401-e9dc-472e-b9ca-3fa06a5b2e22   /datadrive   xfs   defaults,nofail   1   2




Install GlusterFS on Linux VM01





Please note that in my case the IPs 192.168.1.4 and 192.168.1.5 are the private ip’s from VM01 and VM02. Add those configuration on the /etc/hosts.





sudo nano /etc/hosts




192.168.1.4 gluster1.local gluster1
192.168.1.5 gluster2.local gluster2




sudo apt update
sudo apt install software-properties-common
sudo add-apt-repository ppa:gluster/glusterfs-7
sudo apt update
sudo apt install glusterfs-server
sudo systemctl status glusterd.service




Install GlusterFS on Linux VM02





Please note that the IPs 192.168.1.4 and 192.168.1.5 are the private ip’s from VM01 and VM02. Add those configuration on the /etc/hosts.





sudo nano /etc/hosts




192.168.1.4 gluster1.local gluster1
192.168.1.5 gluster2.local gluster2




sudo apt update
sudo apt install software-properties-common
sudo add-apt-repository ppa:gluster/glusterfs-7
sudo apt update
sudo apt install glusterfs-server
sudo systemctl status glusterd.service




Configure GlusterFS on Linx VM01





sudo gluster peer probe gluster2
sudo gluster peer status
sudo gluster volume create sharedvolume replica 2 gluster1.local:/datadrive gluster2.local:/datadrive force
sudo gluster volume start sharedvolume
sudo gluster volume status
sudo apt install glusterfs-client
sudo mkdir /gluster-storage




sudo nano /etc/fstab





Add the following at the end of the file:






gluster1.local:sharedvolume /gluster-storage glusterfs defaults,_netdev 0 0




sudo mount -a




Configure GlusterFS on Linx VM02





sudo gluster peer probe gluster1
sudo gluster peer status
sudo gluster volume status
sudo apt install glusterfs-client
sudo mkdir /gluster-storage




sudo nano /etc/fstab





Add the following at the end of the file:






gluster2.local:sharedvolume /gluster-storage glusterfs defaults,_netdev 0 0




sudo mount -a




Test





In one of the nodes, go to /gluster-storage and create some files:





ssh azureuser@myVM01
azureuser@myVM01:~# sudo touch /gluster-storage/file{1..10}




Then go to the another node and check those files:





ssh azureuser@myVM02
azureuser@myVM02:~# ls -l /gluster-storage
total 0
-rw-r–r– 1 root root 0 Apr 1 19:48 file1
-rw-r–r– 1 root root 0 Apr 1 19:48 file10
-rw-r–r– 1 root root 0 Apr 1 19:48 file2
-rw-r–r– 1 root root 0 Apr 1 19:48 file3
-rw-r–r– 1 root root 0 Apr 1 19:48 file4
-rw-r–r– 1 root root 0 Apr 1 19:48 file5
-rw-r–r– 1 root root 0 Apr 1 19:48 file6
-rw-r–r– 1 root root 0 Apr 1 19:48 file7
-rw-r–r– 1 root root 0 Apr 1 19:48 file8
-rw-r–r– 1 root root 0 Apr 1 19:48 file9




Now execute a shutdown on myVM02:





azureuser@myVM02:~# sudo init 0
Connection to 40.114.24.217 closed by remote host.
Connection to 40.114.24.217 closed.




Access myVM01 and you notice that you still with access to the files:





azureuser@myVM01:~$ ls -l /gluster-storage/
total 0
-rw-r–r– 1 root root 0 Apr 1 19:48 file1
-rw-r–r– 1 root root 0 Apr 1 19:48 file10
-rw-r–r– 1 root root 0 Apr 1 19:48 file2
-rw-r–r– 1 root root 0 Apr 1 19:48 file3
-rw-r–r– 1 root root 0 Apr 1 19:48 file4
-rw-r–r– 1 root root 0 Apr 1 19:48 file5
-rw-r–r– 1 root root 0 Apr 1 19:48 file6
-rw-r–r– 1 root root 0 Apr 1 19:48 file7
-rw-r–r– 1 root root 0 Apr 1 19:48 file8
-rw-r–r– 1 root root 0 Apr 1 19:48 file9




Now let’s create some new files:





azureuser@myVM01:~$ sudo touch /gluster-storage/new-file{1..10}
azureuser@myVM01:~$ sudo ls -l /gluster-storage/
total 0
-rw-r–r– 1 root root 0 Apr 1 19:48 file1
-rw-r–r– 1 root root 0 Apr 1 19:48 file10
-rw-r–r– 1 root root 0 Apr 1 19:48 file2
-rw-r–r– 1 root root 0 Apr 1 19:48 file3
-rw-r–r– 1 root root 0 Apr 1 19:48 file4
-rw-r–r– 1 root root 0 Apr 1 19:48 file5
-rw-r–r– 1 root root 0 Apr 1 19:48 file6
-rw-r–r– 1 root root 0 Apr 1 19:48 file7
-rw-r–r– 1 root root 0 Apr 1 19:48 file8
-rw-r–r– 1 root root 0 Apr 1 19:48 file9
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file1
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file10
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file2
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file3
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file4
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file5
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file6
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file7
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file8
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file9




Then just turn on the myVM02 and you will be able the see all files syncronized on myVM02:





azureuser@myVM02:~$ ls -l /gluster-storage/
total 0
-rw-r–r– 1 root root 0 Apr 1 19:48 file1
-rw-r–r– 1 root root 0 Apr 1 19:48 file10
-rw-r–r– 1 root root 0 Apr 1 19:48 file2
-rw-r–r– 1 root root 0 Apr 1 19:48 file3
-rw-r–r– 1 root root 0 Apr 1 19:48 file4
-rw-r–r– 1 root root 0 Apr 1 19:48 file5
-rw-r–r– 1 root root 0 Apr 1 19:48 file6
-rw-r–r– 1 root root 0 Apr 1 19:48 file7
-rw-r–r– 1 root root 0 Apr 1 19:48 file8
-rw-r–r– 1 root root 0 Apr 1 19:48 file9
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file1
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file10
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file2
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file3
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file4
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file5
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file6
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file7
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file8
-rw-r–r– 1 root root 0 Apr 1 20:00 new-file9




As you can see the files was in sync and without any kind of data loss even in the case of one of the nodes was offline.




Brought to you by Dr. Ware, Microsoft Office 365 Silver Partner, Charleston SC.

%d bloggers like this:
